OPENING ANGLE: 105 Degree.
CUP DIAMETER: 1-4/5″(35 mm). CUP DEPTH: 1/2″(12 mm).
SUITABLE DOOR THICKNESS: 3/5″-1″(16-24mm).
SCREWS HOLE DISTANCE: 1-4/5″(45 mm).
PLATE’S SCREWS HOLE DISTANCE: 1-2/5″(35 mm).
MATERIAL: Cold Rolled-Steel.
FINISH: Nickel Plated.
ADJUSTMENT: 2-way adjustable: Side (±2 mm) and Depth(±2 mm)

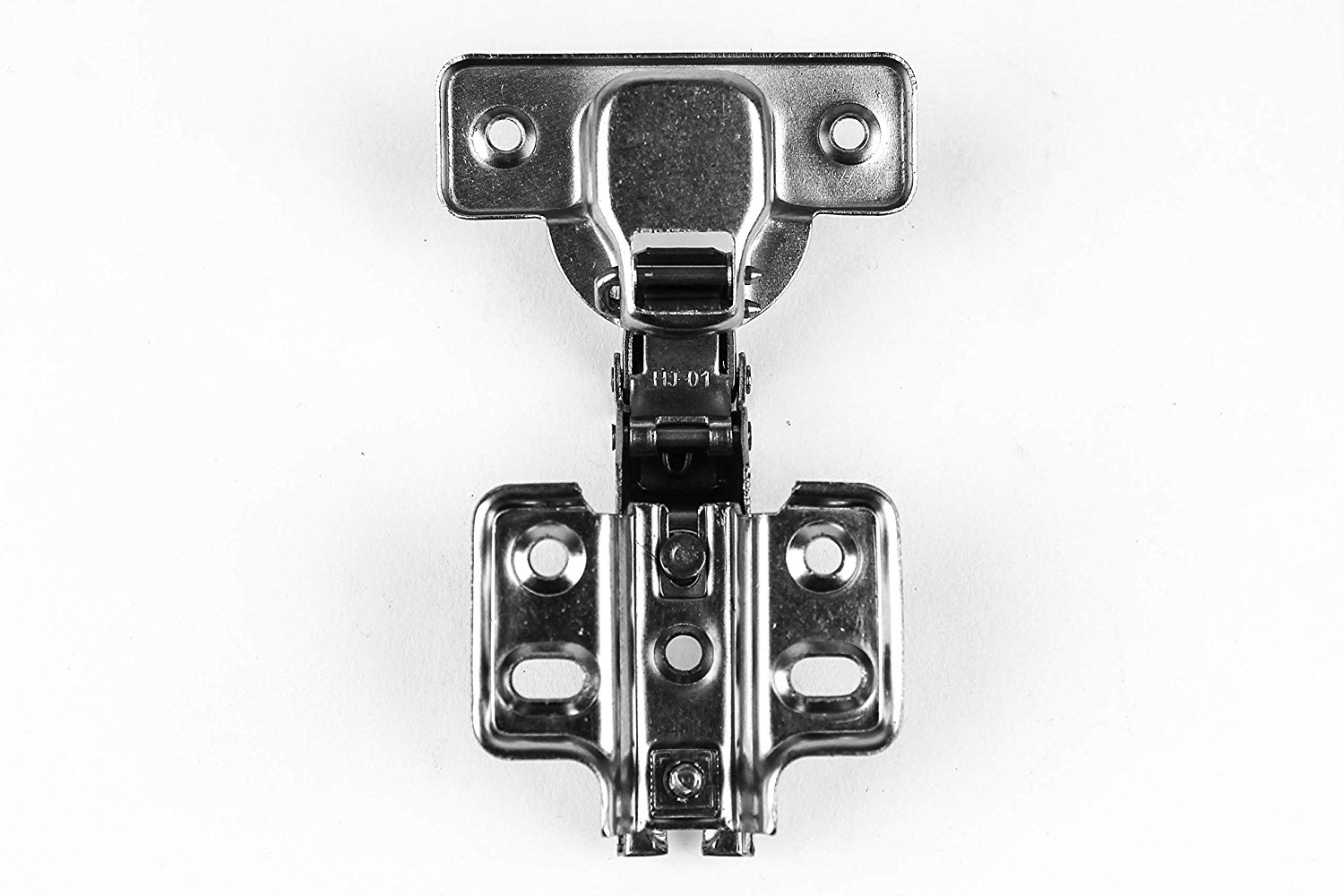

Whether you’re replacing entire cabinets in the kitchen or installing all-new cabinet doors, you need proper hinges to make sure they open smoothly and efficiently every time. That’s why Berta created Half Overlay Frameless Cabinet Hinges to ensure they’re held in the correct position for many years.
Half Overlay Hinges Are Useful For Pairs Of Doors In The Middle Of A Run Of Cabinets.
