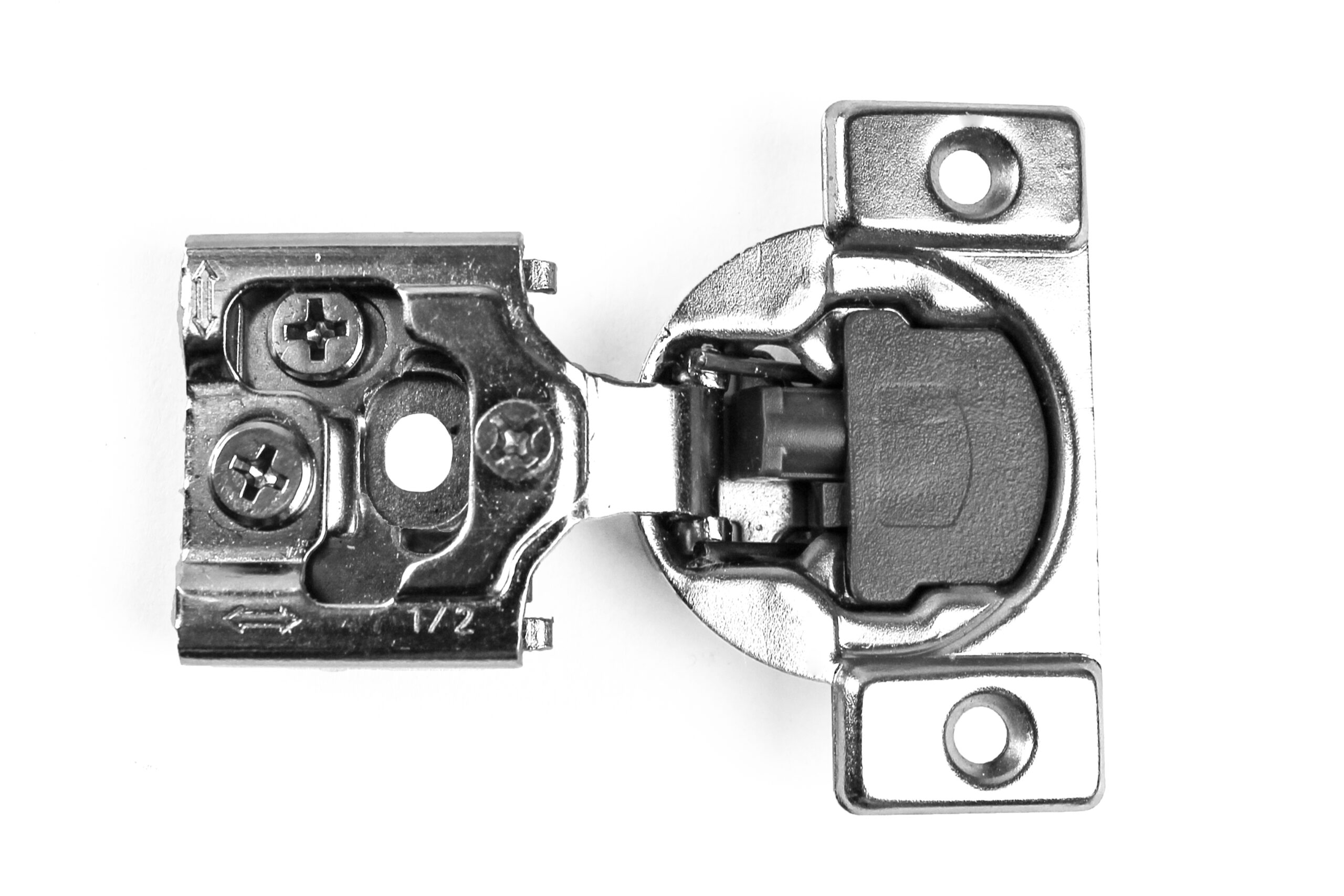

Face Frame Hinges
OPENING ANGLE: 105 Degree, OVERLAY: 1/2 Inch Overlay
CUP DIAMETER: 1-2/5”(35 mm), CUP DEPTH: 2/5″(11 mm)
SUITABLE DOOR THICKNESS: 3/5″-1″(14 – 26 mm)
SCREW HOLE CENTER TO CENTER: 1-4/5″(45 mm)
MATERIAL: Cold Rolled-Steel, FINISH: Nickel Plated
CLOSING TYPE: Soft/Self Close, CABINET TYPE: Face Frame
NOTE: Our hinges are for face frame cabinet doors
ADJUSTMENT: 3-way adjustable: Side (±2 mm), Depth(±2 mm) and Height (± 2 mm)
Berta 1/2″ Overlay hinges are useful for pairs of doors in the middle of a run of cabinets. 3 Ways Cam Adjustment (Vertical, Horizontal and Depth) help easy to install. These hinges are for the face frame cabinet. It is ideal for doors requiring multiple hinges to be fitted.
There are some specifications and installation manuals for Berta 1/2″ Overlay Soft Close hinge.
